Pipeline Surface Preparation
Primer Application
High-Tension Tape Wrapping
Holiday Testing Quality Control

Pipeline Wrapping & Coating Works

Protect your critical infrastructure from corrosion, soil chemicals, and moisture. We provide end-to-end, high-performance wrapping and coating solutions for underground pipelines, industrial piping networks, and structural steel.

By combining industry-grade materials with strict quality control, we ensure your assets withstand the harshest environments and achieve maximum operational life.

Our Step-by-Step Execution Process

We follow a meticulous four-stage process to ensure an unbroken, long-lasting protective barrier.

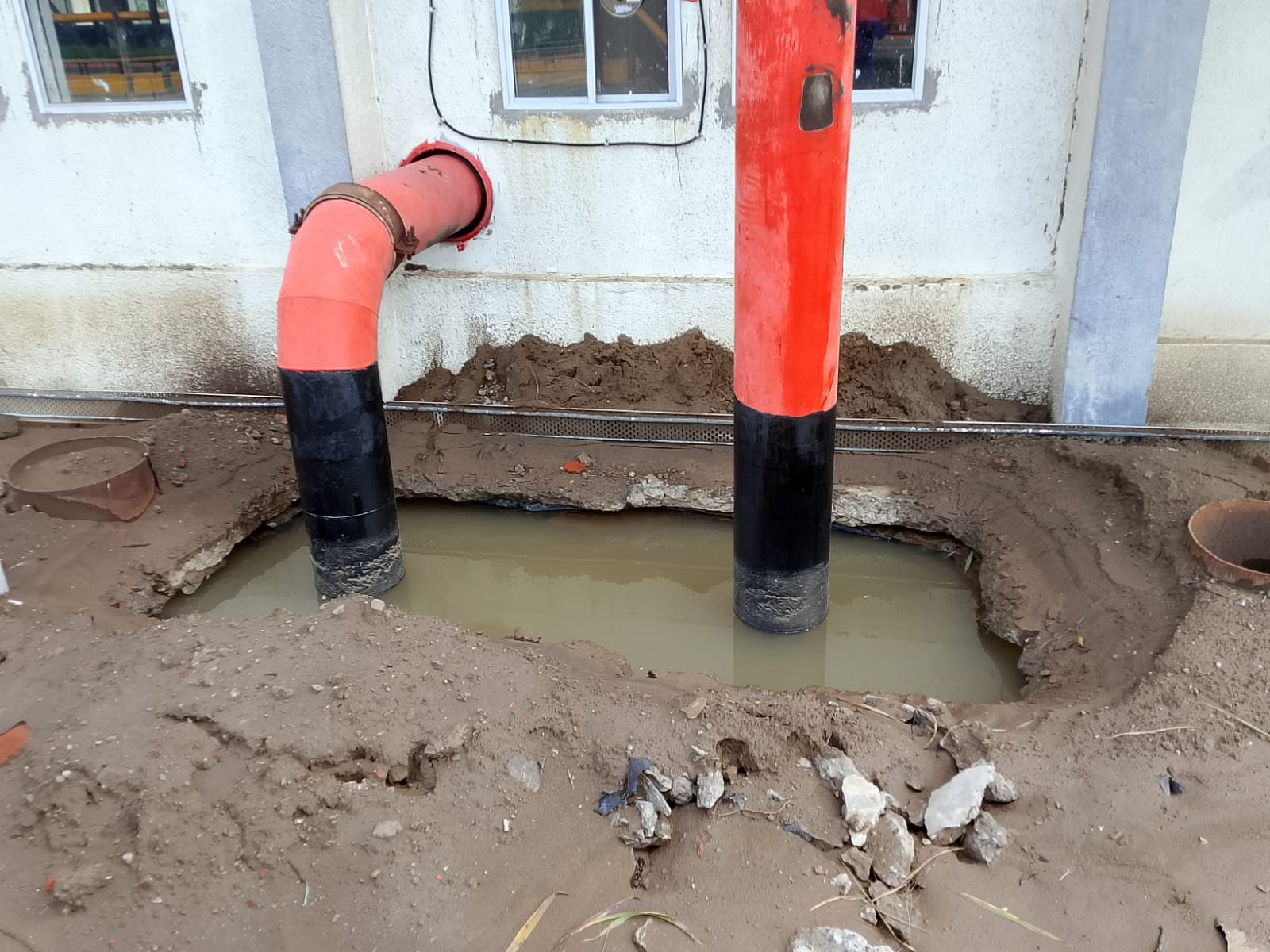

1. Rigorous Surface Preparation

Long-term coating performance depends entirely on the cleanliness of the underlying metal.

  • Contaminant Removal: We thoroughly clean the pipe surface to remove all oil, grease, dirt, and moisture.
  • Mechanical Blasting/Cleaning: We use manual or mechanical power tools to strip away rust, mill scale, and old coatings, achieving the rough profile required for maximum adhesive bonding.

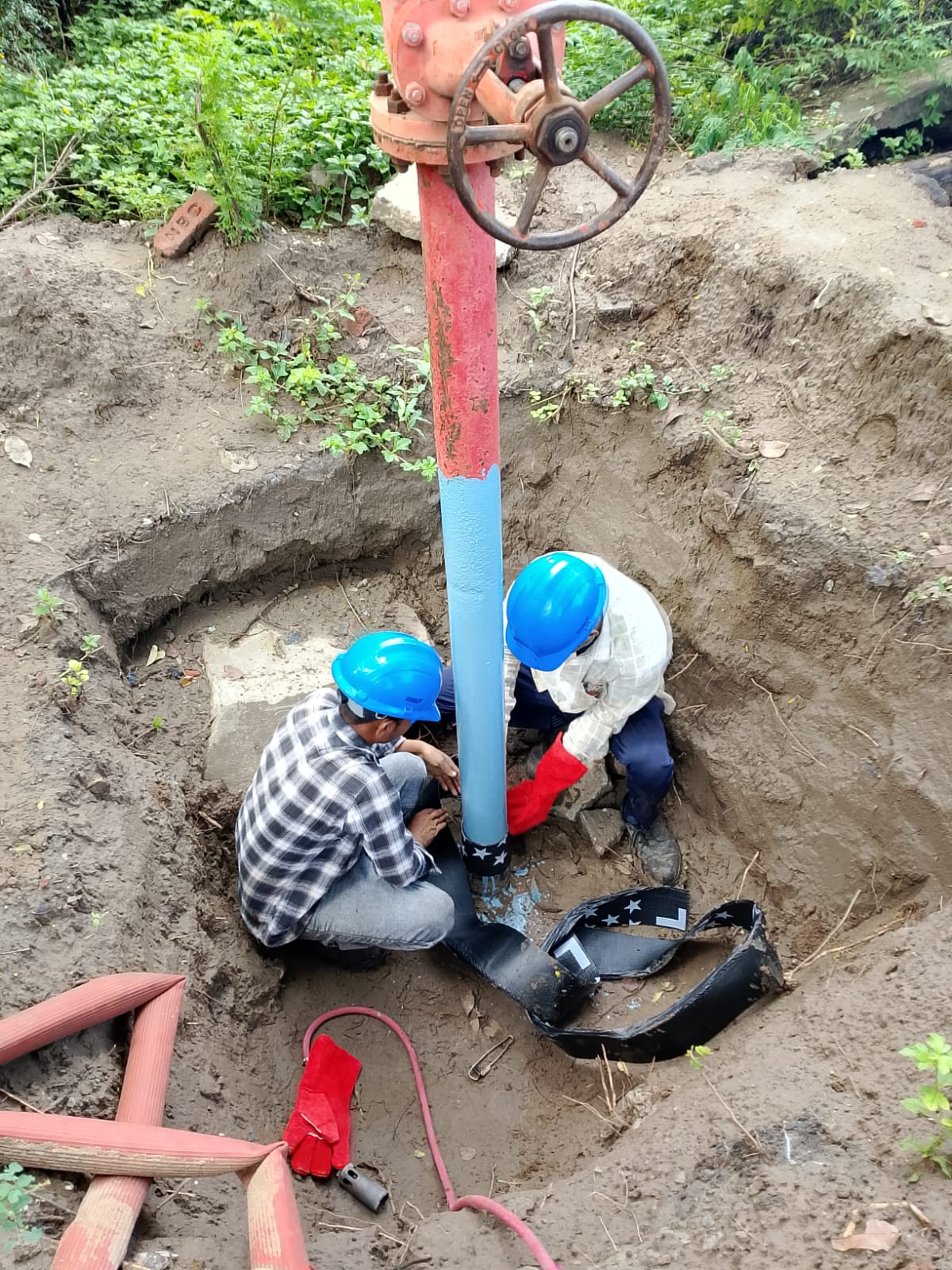

2. Primer Application

An essential bonding agent applied immediately after surface cleaning to prevent flash rusting.

  • Uniform Coverage: A thin, uniform coat of high-tack liquid primer is applied to the bare metal.
  • Enhanced Adhesion: The primer chemically bonds with the steel, creating a receptive surface that locks the wrapping tape permanently in place.

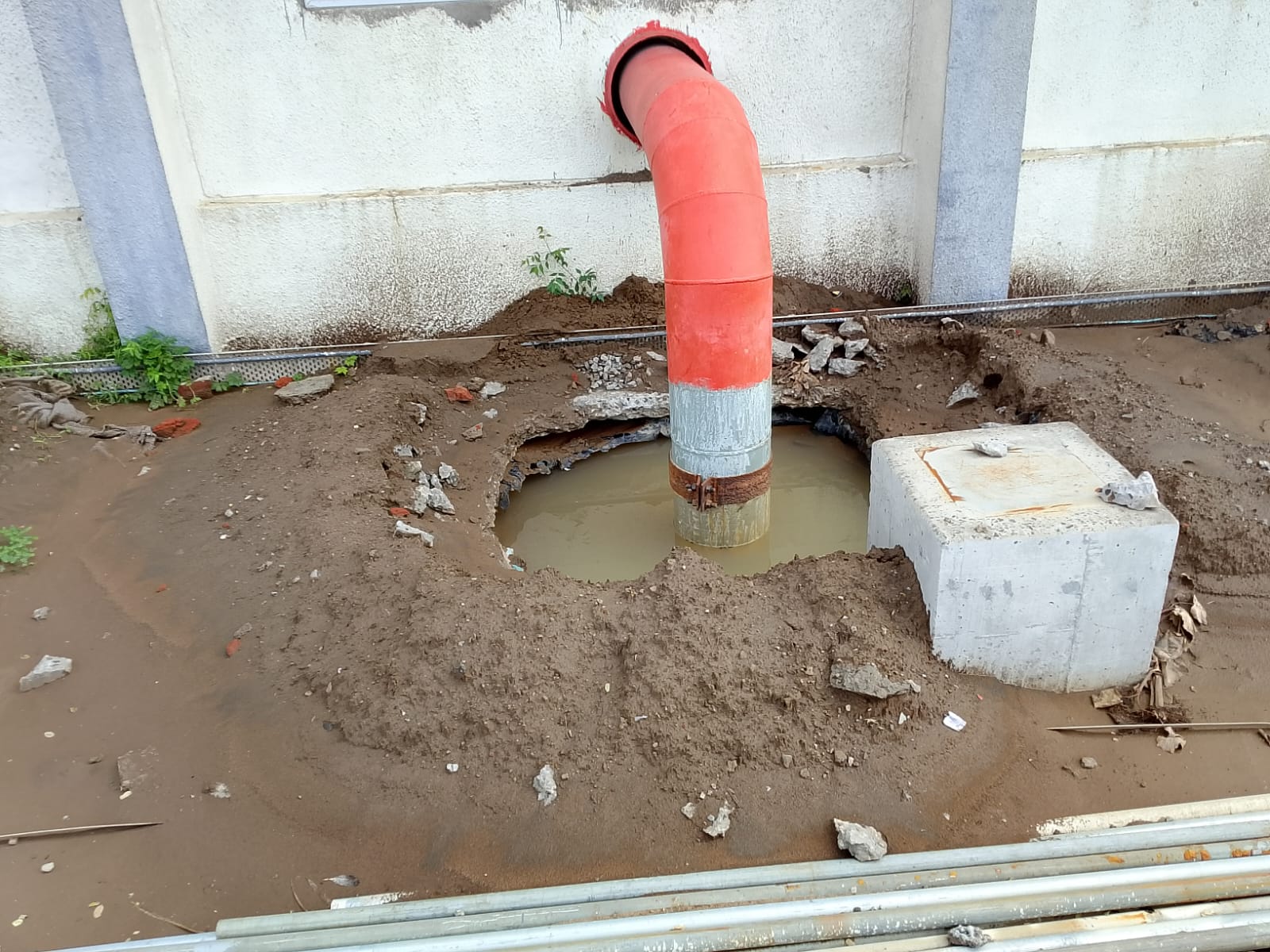

3. High-Tension Tape Wrapping

We apply premium anti-corrosion tapes using precise mechanical tension to eliminate air pockets.

  • Spiral Wrapping: Tapes are spiral-wrapped around the pipe surface with consistent overlap.
  • Wrinkle-Free Layering: Proper tensioning ensures the tape conforms perfectly to field joints, bends, tees, and straight pipe sections without lifting at the edges.
4. Advanced Holiday Testing & Quality Control

We do not guess if a coating is perfect—we prove it.

  • Microscopic Flaw Detection: We pass a high-voltage or low-voltage Holiday Detector Machine across 100% of the coated surface.
  • Zero-Defect Assurance: The machine uses an electrical probe to find invisible pinholes, air bubbles, or thin spots. If a flaw exists, the machine alerts our technicians instantly.
  • Immediate Patching: Any identified faults are immediately repaired, re-wrapped, and re-tested until the pipeline achieves a flawless, zero-defect rating before burial.

Looking for a quality and affordable Services for your next project?
